WW1 Wire Wrangler Speed Stripping Tool
Cable Stripper
Wire Wrangler: Underground Cable Prep Tool



Alternative Views:


Our Price: $2,395.00

Quantity in Stock:(Out of Stock)
Product Code: MS-WW1
Qty:

Description Technical Specifications Extended Information

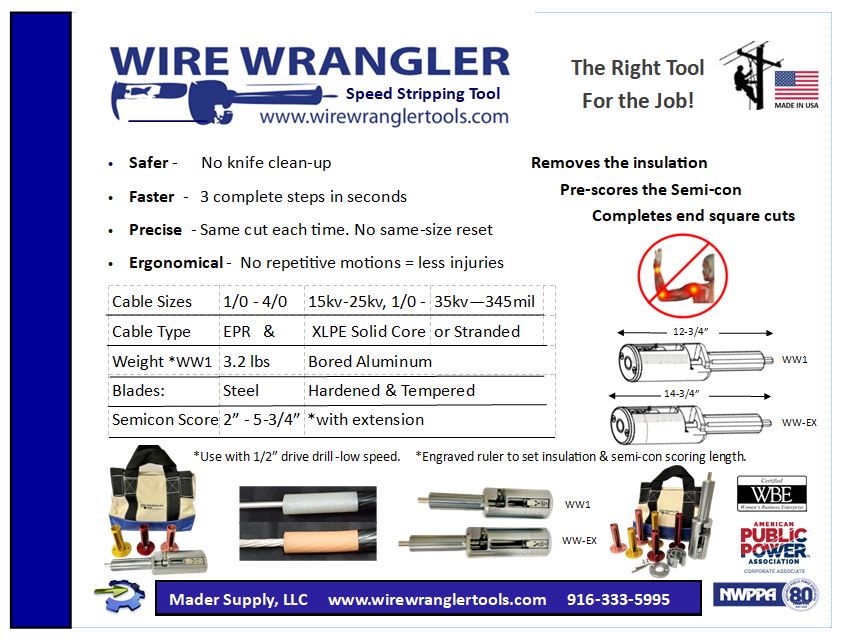

Wire Wrangler Speed Stripping Tool:
Removes the Insulation, scores the Semi-con and completes the "square cuts all in one process driven by a 1/2" drill! Prepare the cable for a perfect elbow termination or quick splice. Works well with 15kV - 25kV and 1/0 35kV 345mil. Works on XLPE and EPR. You'll get the same precision cable strip every time with no resetting while performing the same sized cable terminations.
The Wire Wrangler makes cable prepping effortless. Finally, the right tool for the job!
1. Removes the insulation from the conductor
2. Pre-scores the Semicon
3. Completes square cuts at base of conductor & end of semi-con score for clean removal.
The Wire Wrangler is:
SAFER - No exposed blades - ergonomical-no repetitive motions
FASTER - Driven by a 1/2" drill, 10-15 seconds to complete insulation removal, pre-score semi-con and complete square cuts.
PRECISE - Same clean, precise cut every time. No resetting of the tool for each termination while using same size cable.
*Easily swap out cable adapters to change cable sizes and adjust insulation blade depth and semi-con score depth.
WW1 Includes: The Wire Wrangler Tool Body, 3- Color Coded Cable Adapters
(1/0, 2/0 and 4/0) and a Cap for 1/0 35kV 345mil, Laminated Guide/Setup card,
all in a Canvas & leather tool bag.
Wire Wrangler Speed Stripping Tool
Features
  • No exposed blades
    Bored Aluminum Housing
    Adjustable Semi Conductor Blade
    Adjustable Insulation Blade
    3 Color Coded Interchangeable Cable Adapters: 1/0, 2/0 & 4/0 AWG Cable Sizes
    15kV - 25kV, 1/0 -35kV 345mil XLPE & EPR Solid Core, Stranded and Compressed Conductors
    Stainless Steel Stop Bearing to eliminate conductor fray
    Removable Tail Shaft for cleaning
    Canvas & leather tool bag for easy storage
